Removing drawing tools

Drawing tools can be removed from the chart via user interface, or in code.

Removing via user interface​

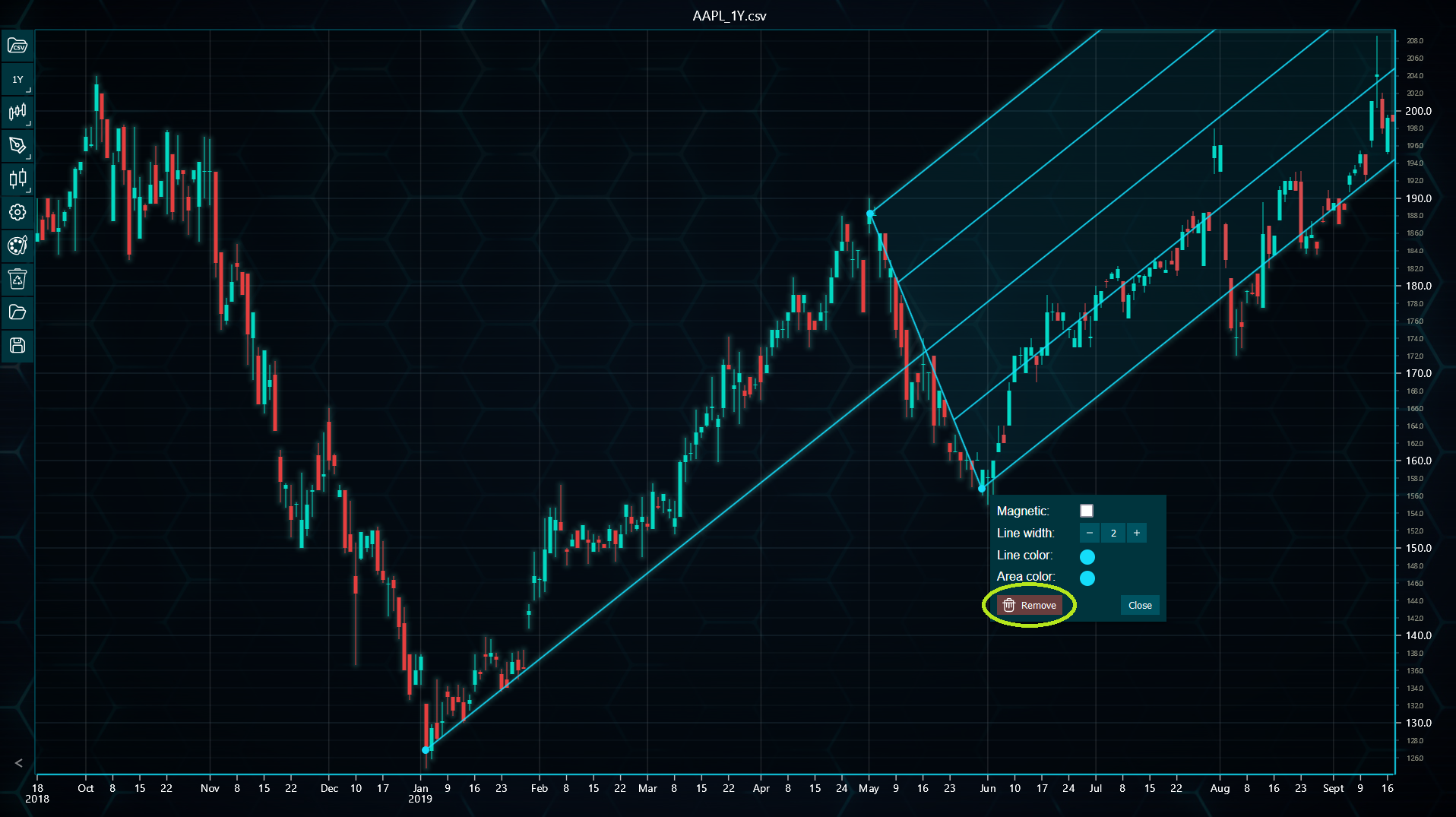

All drawing tools can be removed by clicking the Remove button found in the drawing tool settings menu, that is brought up by right-clicking any of the tool's control points. Some drawing tools, such as horizontal and vertical lines, arrows and text elements, don't have control points. In these cases, right-clicking anywhere over the tool brings up the menu.

Removing drawing tools via UI

Amongst the settings buttons in the top-right corner, there is also Clear contents button. Clicking this opens various clearing options including a button to remove all added drawing tools from the chart.

Removing drawing tools in code​

Drawing tools can be removed in code can be done by calling dispose() method. The drawing tool must be saved as a variable beforehand.

// Assign drawing tool as a variable.
const trendLine = tradingChart.drawingTools().addTrendLine(10, 30, 40, 20)

// Then later remove it.
trendLine.dispose()

You can also remove all drawing tools simultaneously by calling disposeAllDrawingTools() found under chart.drawingTools() method.

tradingChart.drawingTools().disposeAllDrawingTools()
