Area Range

import lightningchart as lc

lc.set_license('my-license-key')

data = [
    {'position': 0, 'low': 0, 'high': 1},
    {'position': 1, 'low': 1, 'high': 2},
    {'position': 2, 'low': 3, 'high': 4},
    {'position': 3, 'low': 2, 'high': 3},
    {'position': 4, 'low': 4, 'high': 2},
    {'position': 5, 'low': 6, 'high': 5},
    {'position': 6, 'low': 4, 'high': 3},
    {'position': 7, 'low': 5, 'high': 4},
    {'position': 8, 'low': 3, 'high': 4},
    {'position': 9, 'low': 4, 'high': 5},
]

chart = lc.ChartXY(
    theme=lc.Themes.Light,

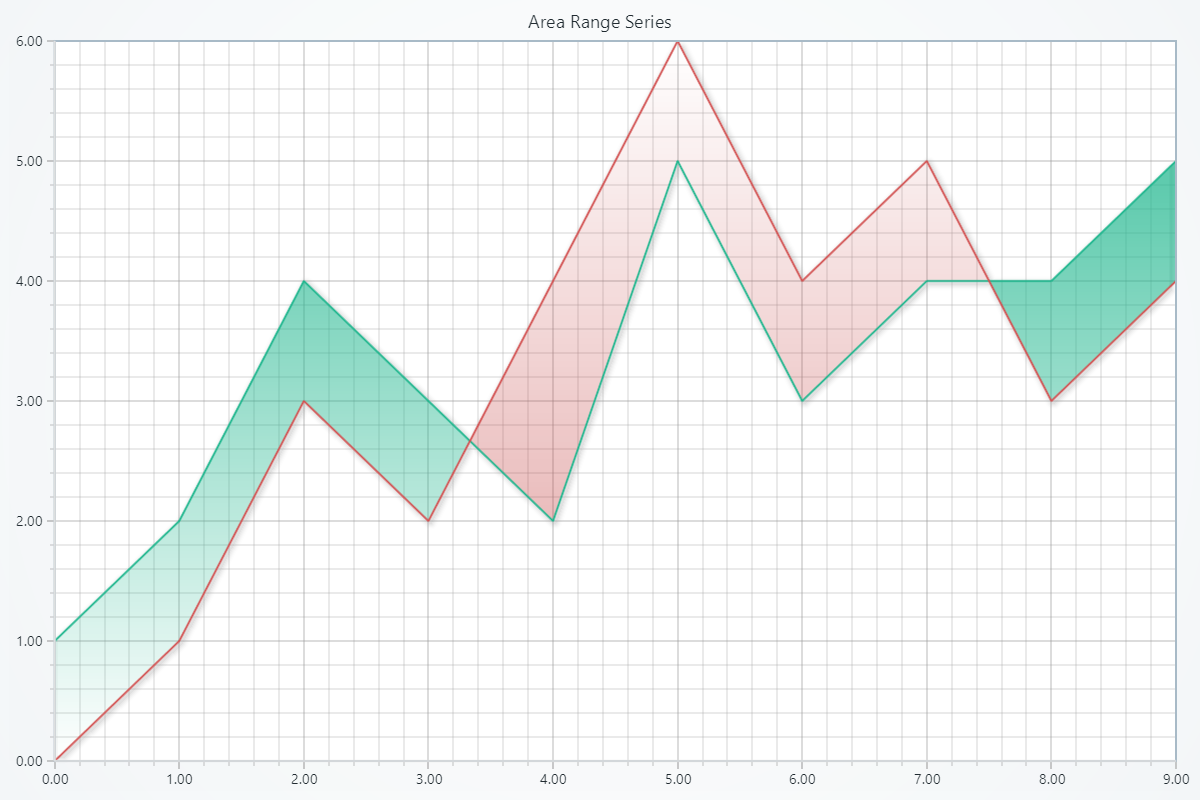

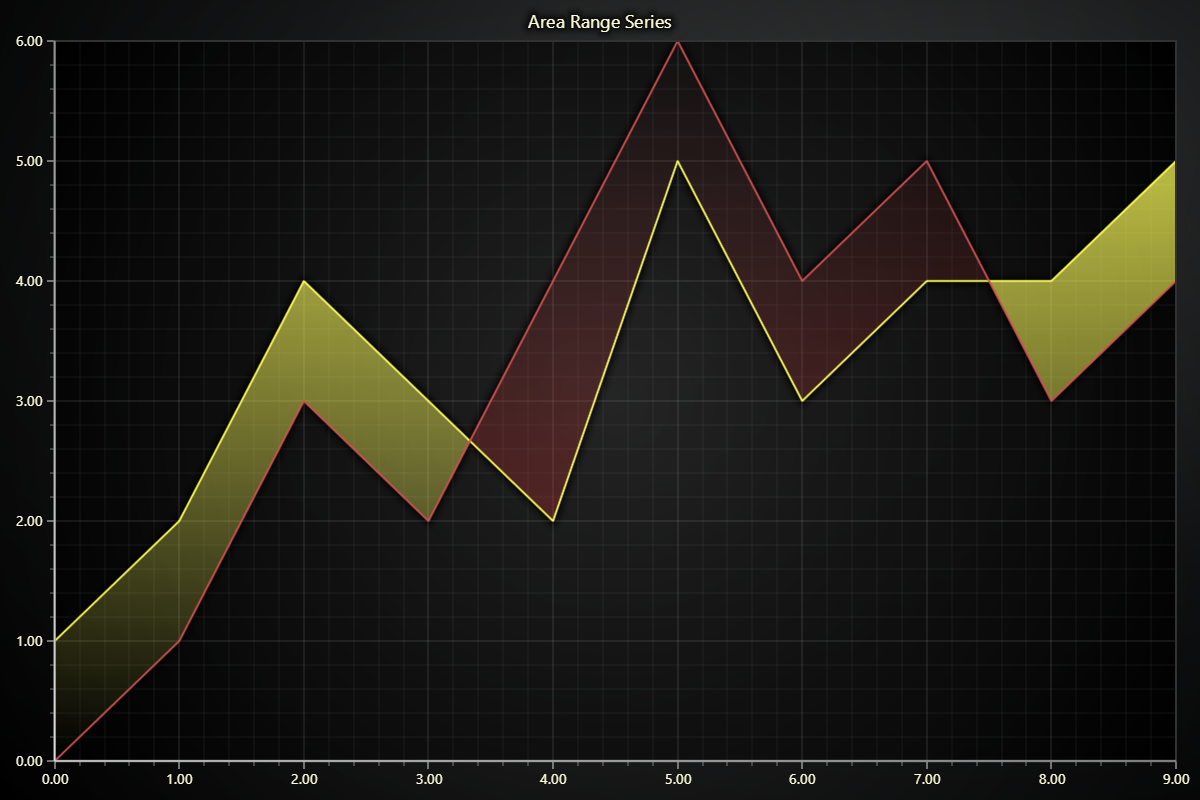

    title='Area Range Series'
)
series = chart.add_area_range_series().add_dict_data(data)
chart.open()
