Polar Polygon

Series for visualizing a collection of polygons inside the Polar coordinate system. They are especially useful for highlighting parts of the Polar coordinate system.

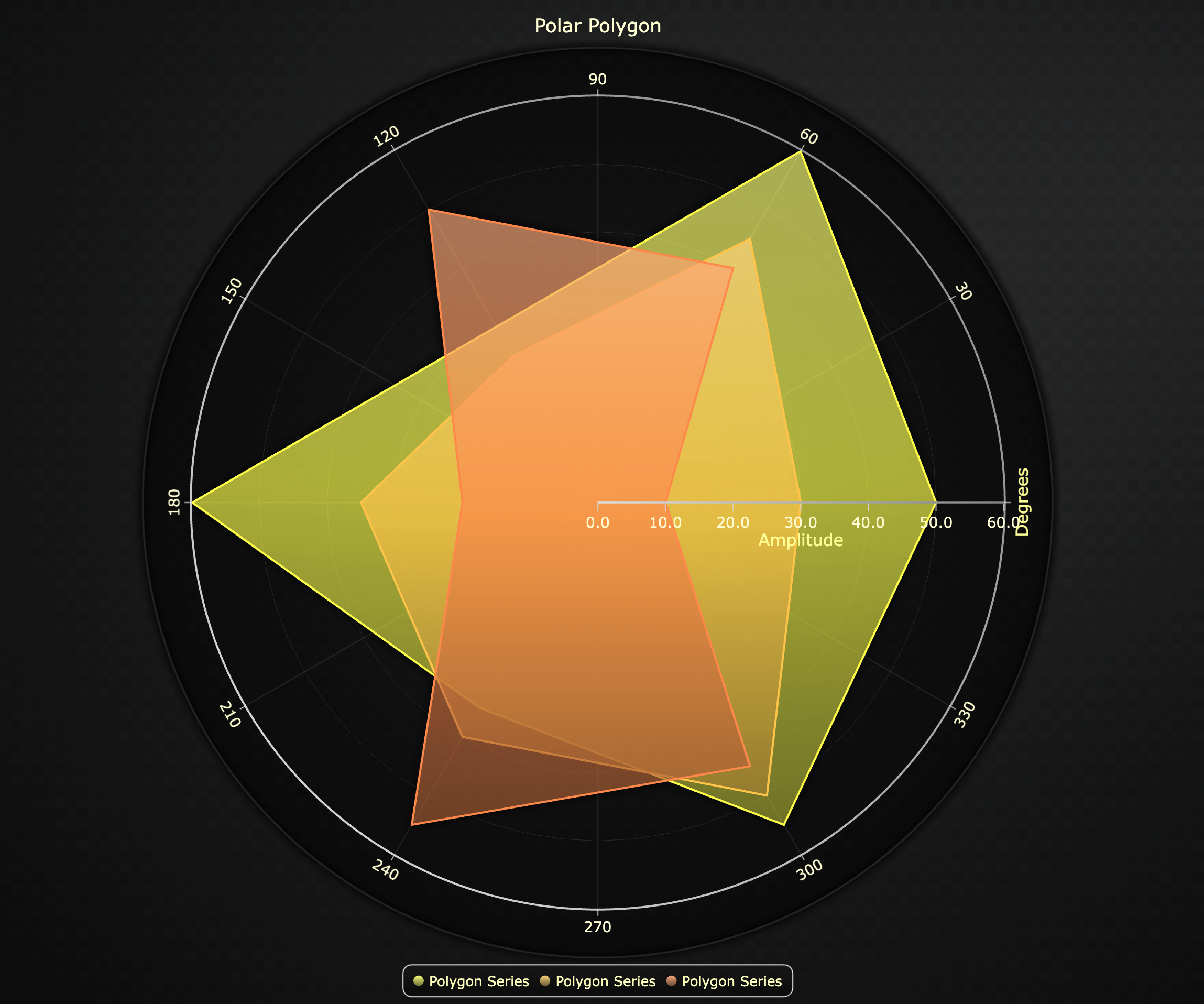

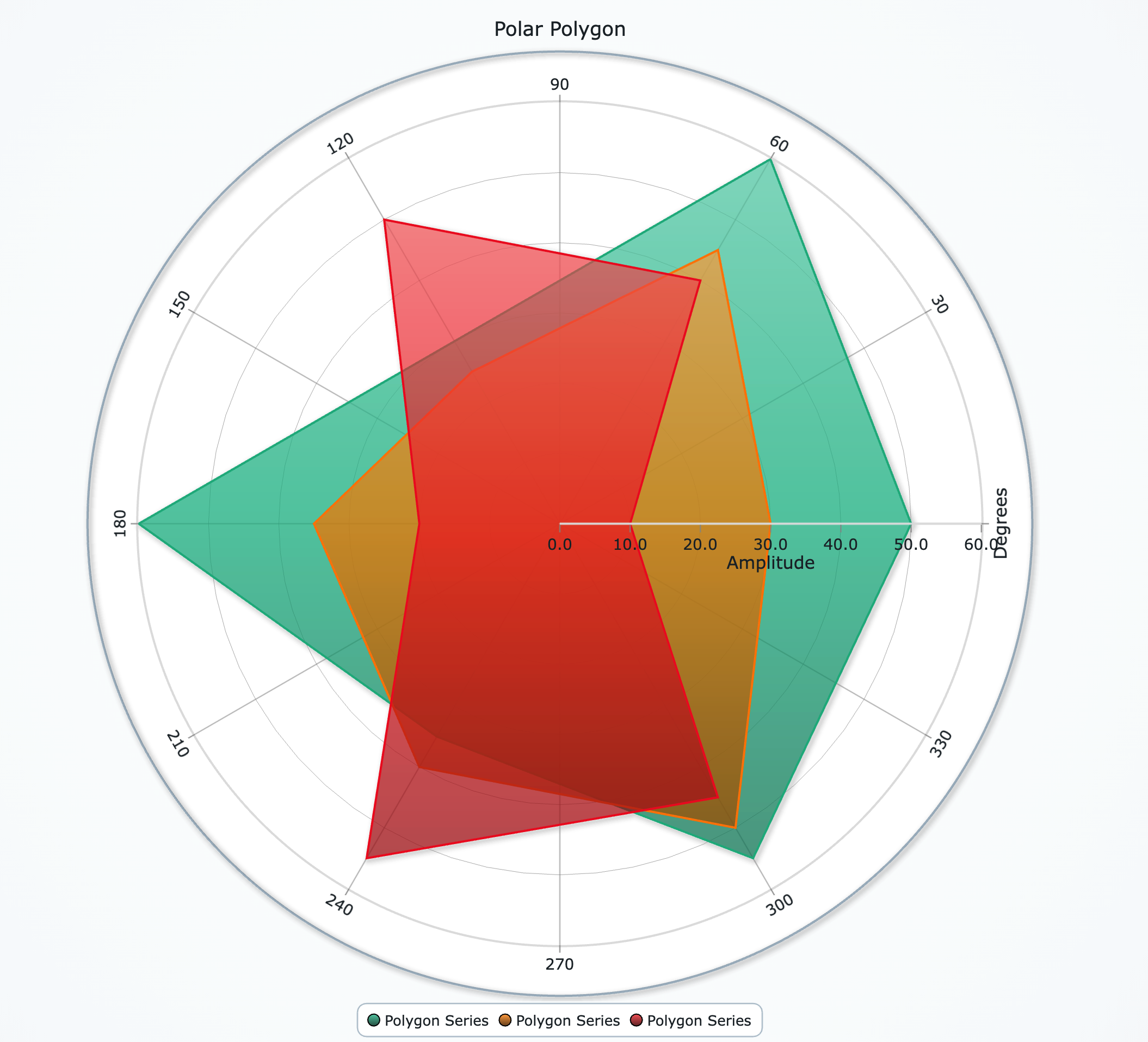

Polar Polygon SeriesPolar Polygon Series

Creating Polar Polygon Series​

polygon_series = chart.add_polygon_series()

Series Methods​

# Create a new polygon within this series:
polygon = polygon_series.add_polygon()

# Change fill color of *all* polygons in the series:
polygon_series.set_color('#00AAFF')

# Change the outline stroke of *all* polygons:
polygon_series.set_stroke(thickness=2, color='black')

Add Polygon​

Once you call add_polygon() you can add a new polygon and use it to define geometry and manage individual polygon visibility:

# Define the shape:
polygon = polygon_series.add_polygon()
polygon.set_geometry([
    {'angle': 0,   'amplitude': 50},
    {'angle': 90,  'amplitude': 80},
    {'angle': 180, 'amplitude': 30},
])

Polygon Utility Methods:​

# Hide or show it:
polygon.set_visible(False)

# Remove it completely:
polygon.dispose()

Series Utility Methods​

This section works the same as for Line, to avoid duplication of guides, please refer to the section under Line

Legend​

Please see common legend section.

Examples​

Link to the examples
